Replacement Parts
Below are just a few of the replacement parts we offer. If you purchased a machine and need replacement parts that are not listed here, please contact our office and we will be happy to assist you.
Feeder Bowl Controllers
FC-40+ Vibratory
Feeder Bowl Controller
The FC-40 Plus Feeder Cube is a single controller, housed in a Nema-1 general purpose enclosure. Input voltage is 120VAC, 50/60 Hz. Fused for 15 amps.

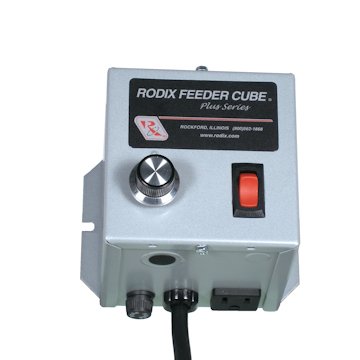

FC-90+ Vibratory
Feeder Bowl Controller
The FC-90 Plus Feeder Cube is a single controller with parts sensing, housed in a Nema-1 general purpose enclosure. Input voltage is 120VAC, 50/60 Hz. Fused for 15 amps.
FC-112+ Vibratory
Feeder Bowl Controller
The FC-112 Plus Feeder Cube is a triple controller with two 90 Plus Series parts sensing units and one 40 Plus Series unit in a Nema-1 general purpose enclosure. Input voltage is 120VAC, 50/60 Hz. Unit A is fused for 10 amps, Unit B for 15 amps and Unit C for 5 amps.
FC-200 Vibratory
Feeder Bowl Controller
The FC-200 Feeder Cube is a single digital control based on the 90 Plus Series. It is housed in a Nema 1 general purpose enclosure. Input voltage is 120VAC, 50/60 Hz. Output is fused for 15 amps.
VF-3 Vibratory
Feeder Bowl Controller
The VF-3 AUTO TUNE® Feeder Cube is a single variable frequency controller in a Nema-1 general purpose enclosure with the vibration sensor installed. UL listed (File E183233). Input voltage is 85-264 VAC, 50/60 Hz and fused for 5 amps. Output voltage is 0-120/240 VAC. Output frequency is 5-300 Hz. Rated output current is 3 amps at 120VAC or 2 amps at 240VAC.

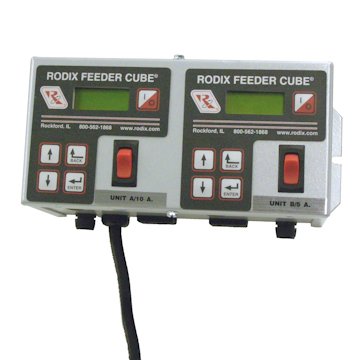

FC-200-2 Vibratory
Feeder Bowl Controller
The FC-200-2 Feeder Cube is a dual digital controller with two part sensing units, housed in a Nema-1 general purpose enclosure. Input voltage is 120VAC, 50/60 Hz. Unit A is fused for 10 amps; Unit B is fused for 5 amps.
VF-9 Vibratory
Feeder Bowl Controller
The VF-9 AUTO TUNE® Feeder Cube is a single variable frequency controller in a Nema-1 general purpose enclosure with the vibration sensor installed. UL listed (File E183233). Input voltage is 85-264 VAC, 50/60 Hz and fused for 5 amps. Output voltage is 0-120/240 VAC. Output frequency is 5-300 Hz. Rated output current is 9 amps at 120VAC or 7 amps at 240VAC.
FC-200-3 Vibratory
Feeder Bowl Controller
The FC-200-3 Feeder Cube is a triple digital controller with three part sensing units, housed in a Nema-1 general purpose enclosure. Input voltage is 120VAC, 50/60 Hz. Unit A is fused for 10 amps; Unit B is fused for 15 amps; Unit C is fused for 5 amps.
Air Jets
Air Jet (1/8” or 3/16”)
with Flange
Air Jet (3/16”)
with Standoff
Air Jet (1/8”)
with Standoff
Air Jet
Mounting Clamp
Drive Unit & Inline Coils

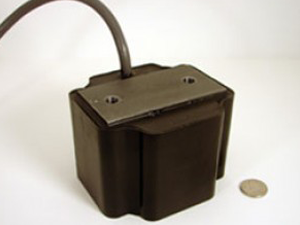

Drive Coil Unit - V101
Length: 4.3 Inches
Width: 3.8 Inches
Height: 3.0 Inches
Voltage: 115Vac
Fits 15”, 18”, 21”, 24”, 30” Drive Units
Drive Coil Unit - V103
Length: 4.3 Inches
Width: 2.6 Inches
Height: 3.0 Inches
Voltage: 115Vac
Fits 12” Drive Unit and
Standard Storage Hoppers
Inline Coil - V113
Length: 1.5”
Width: 2.0”
Height: 2.0”
Voltage: 115 VAC
Fits Standard Inline Drives
